Dongar reference

Adapter Guide

A visual reference for the OEM auto-dimming mirror, rainsensor, and dome-light connectors we build adapters for. Use this to identify the port in your vehicle and find the matching Dongar adapter.

1
Look at your mirrorPull the plastic shroud off the mirror base, or look behind the mirror for a plug.
2
Match the photoCompare what you see to the connector photos below. Pin count and shape matter more than color.
3
Confirm in the Fit FinderNot sure? Enter your year, make and model — or send us a photo.

Dash cam plug types

Every common dash cam and radar detector plug works with Dongar. Each adapter ships with a short USB-C → USB-C cable in the box. For MicroUSB, MiniUSB, RJ11 and DC-barrel devices, add the matching converter from our USB-C cable lineup.

A few older Garmin dash cams (Dash Cam 20, 45, 55, 65) draw power over USB but still require Garmin's proprietary charger. All current-generation Garmin Dash Cams are compatible.

OEM connectors by make

Each card is one connector we build an adapter for. The yellow code is the Dongar adapter that fits it. Tap a photo to enlarge.

Mirror base, under shroud — port at the base of the mirror, under the plastic cover Behind the mirror — port on the back of the mirror, no cover to remove Overhead console — dome-light / overhead-console cavity Rain-sensor module — windshield-mounted rain / light sensor Safety Sense computer — Toyota Safety Sense lane-trace module behind the mirror

Toyota / Lexus

9 connectors
DCA-10BMirror base, under shroud

10-pin Type B

FitsToyota, Lexus, Subaru

The most common port found on newer Toyota / Lexus. Example applications: 2020+ Sienna, 2022+ Tundra, current Prius, current RAV4. Also fits most current-gen Subaru — see Subaru section.

View product →Check your exact vehicle in the Fit Finder
DCA-12AMirror base, under shroud

12-pin Type A

FitsToyota, Lexus, Honda, Infiniti, Subaru

Currently used on the 2015+ Toyota Tacoma. Also super common on 2012–2022 Sienna, 2015–2021 Tundra, select Honda Ridgeline, certain Infiniti trims, and older framed-mirror Subaru (Crosstrek, WRX, Impreza ~2010–2015).

WILL NOT WORK if plugged into the Toyota/Lexus Safety Sense computer. Plugging into TSS will interfere with lane-keep / pre-collision systems. Only plug into auto-dimming mirrors.

View product →Check your exact vehicle in the Fit Finder
DCA-12TSafety Sense computer

12-pin TSS

FitsToyota, Lexus

Powers from the Toyota Safety Sense lane-trace-assist computer behind the rearview mirror. Used on 2019+ Toyota/Lexus where the auto-dim mirror port is unavailable.

View product →Check your exact vehicle in the Fit Finder
DCA-14AMirror base, under shroud

14-pin Type A

FitsToyota, Lexus

Used on older Toyota/Lexus vehicles that had a mirror-integrated backup LCD screen — older Tacoma (2005–2015), Tundra (2007–2013), FJ Cruiser.

View product →Check your exact vehicle in the Fit Finder
DCA-5AOverhead console

5-pin Type A (dome)

FitsToyota

Hidden in the overhead console — same port the manufacturer uses for their dealer-installed dash cam. 2022+ Toyota.

View product →Check your exact vehicle in the Fit Finder

Subaru

3 connectors
DCA-3AOverhead console

3-pin Type A

FitsSubaru, Toyota (GR86)

Found in pre-2017 Subaru and in all Subaru BRZ + Toyota GR86 from 2013 onward. Requires accessing the connector inside the overhead console / dome-light cavity.

View product →Check your exact vehicle in the Fit Finder
DCA-5EMirror base, under shroud

5-pin Type E

FitsSubaru

Current-generation Subaru — port at the base of the mirror, under the plastic shroud near the EyeSight module, or accessible from the maplight cavity. A skinny, narrow shroud at the mirror base is the visual tell.

View product →Check your exact vehicle in the Fit Finder

Ford / Lincoln

4 connectors

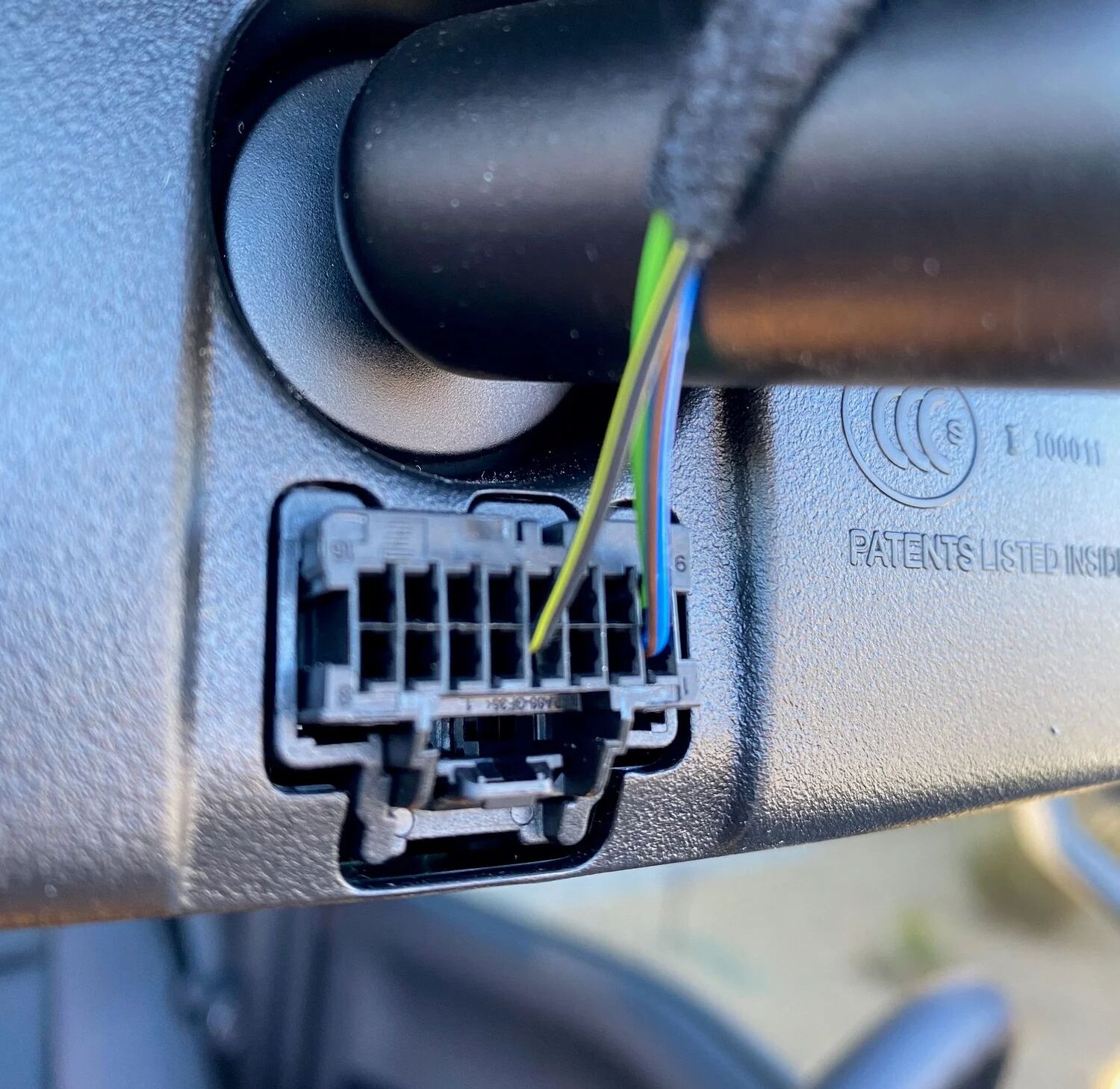

DCA-16ABehind the mirror

16-pin Type A

FitsFord

The most common mirror used on Ford. Example applications: Bronco (non-Sport), select F-series (F150, F250, F350) depending on year and options, F150 Lightning.

View product →Check your exact vehicle in the Fit Finder

Honda / Acura

4 connectors
Photos coming soon

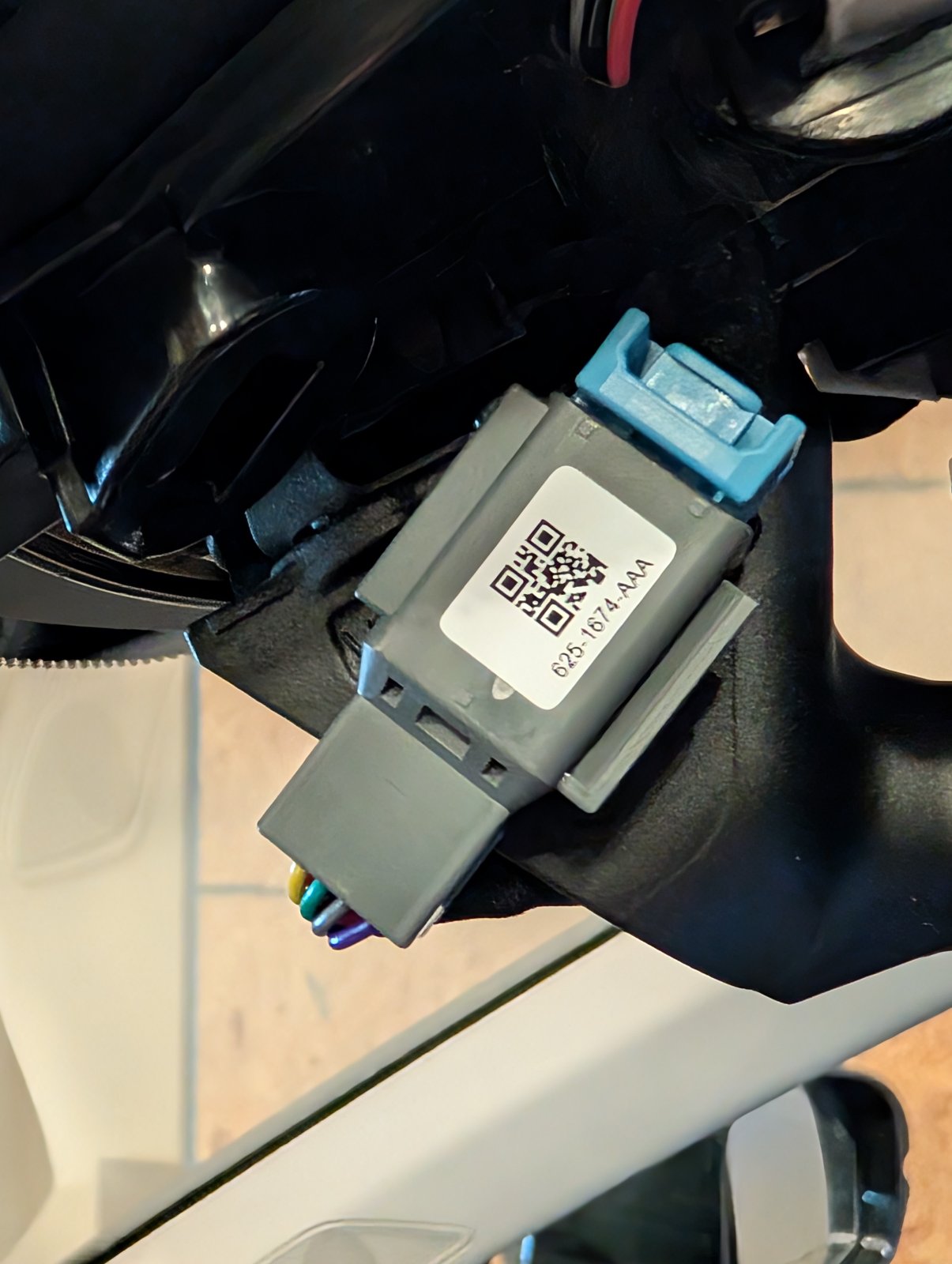

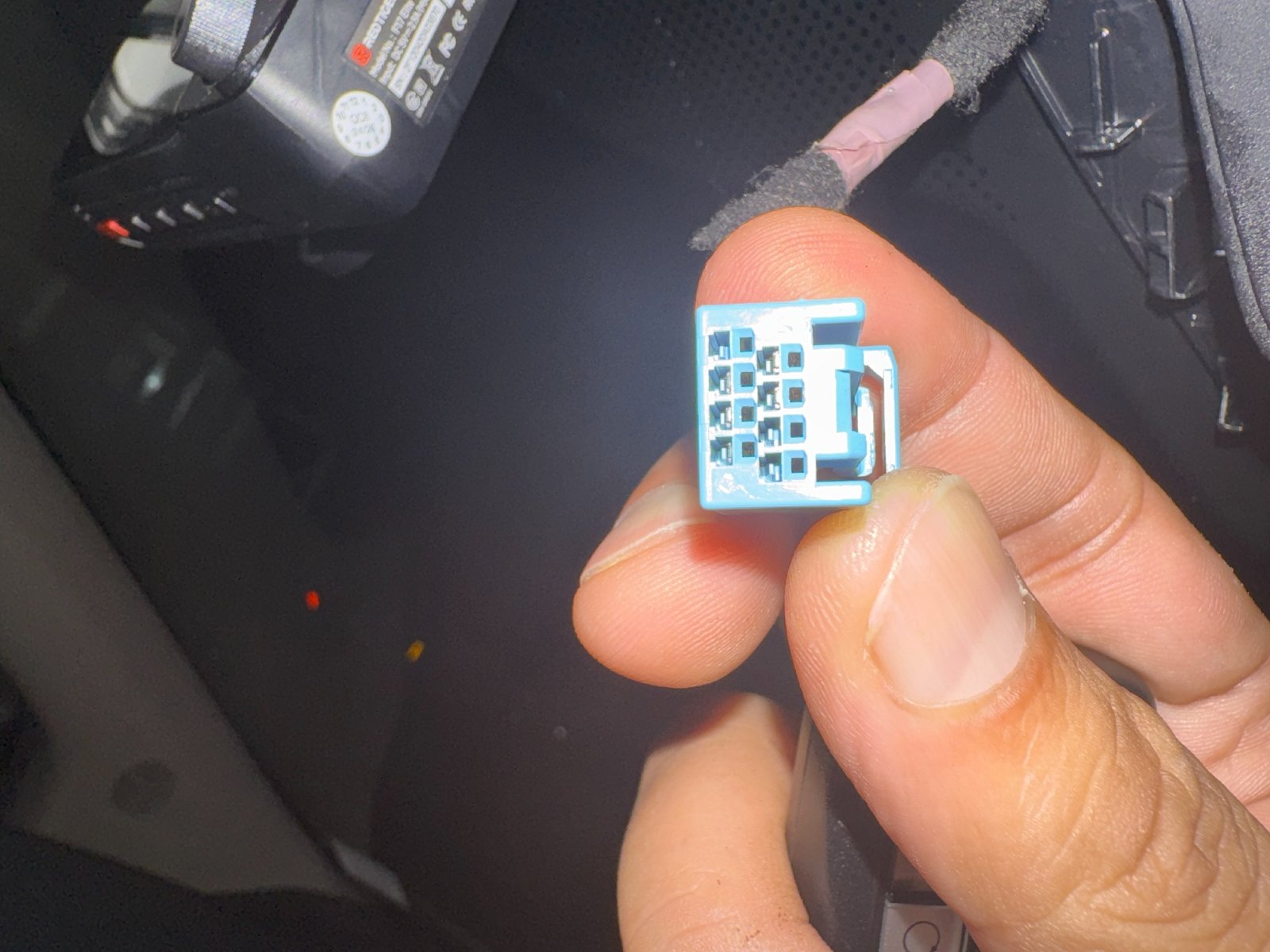

DCA-8BOverhead console

8-pin Type B (dome)

FitsHonda, Acura

2022+ Honda / Acura — alternative power tap from the overhead console (same harness location used to power the maplight).

Coming soonCheck your exact vehicle in the Fit Finder

Mazda

3 connectors
DCA-10ABehind the mirror

10-pin Type A

FitsMazda, Nissan, INFINITI

Most common mirror on Mazda. The same connector and adapter also cover most Nissan / INFINITI — see the Nissan section.

View product →Check your exact vehicle in the Fit Finder

Nissan / INFINITI

2 connectors
DCA-10ABehind the mirror

10-pin Type A

FitsNissan, INFINITI

Most common Nissan / INFINITI mirror connector. Example applications: GT-R, Z, Frontier, Altima, Sentra. Same adapter as the Mazda 10-pin Type A.

View product →Check your exact vehicle in the Fit Finder

Mopar — Dodge / Jeep / RAM / Chrysler

2 connectors

Hyundai / Kia

1 connector

GM — Buick / Cadillac / Chevrolet / GMC

1 connector
DCA-10GMirror base, under shroud

10-pin Type G

FitsBuick, Cadillac, Chevrolet, GMC

Now supported. Covers most 2010–2026 GM brands across Buick, Cadillac, Chevrolet, and GMC with an auto-dimming mirror.

GM mirrors with OnStar emergency-response features were historically unsupported. The DCA-10G works on the auto-dim mirror connector and does not touch the OnStar circuit.

View product →Check your exact vehicle in the Fit Finder

Porsche / BMW / VW Group

2 connectors
DCA-3W1Mirror base, under shroud

3-pin Key Way 1

FitsPorsche (framed mirror), BMW, MG

Originally designed for the 991-gen 911 and 981-gen Cayman / Boxster framed Porsche mirror. Also fits 718 and most modern BMW (440i and similar). On Porsche the same connector sometimes lives in the rainsensor housing.

View product →Check your exact vehicle in the Fit Finder
DCA-3W2Mirror base, under shroud

3-pin Key Way 2

FitsAudi, Cupra, Porsche, SEAT, Skoda, Volkswagen, MG

The light/rain-sensor 3-pin connector found in almost all current-generation VW Group vehicles. On Porsche 718, 997 and 991, it’s the dome-light feed.

View product →Check your exact vehicle in the Fit Finder

Mercedes-Benz

2 connectors
Photos coming soon
DCA-3MRain-sensor module

3-pin Mercedes

FitsMercedes-Benz

Current-generation Mercedes-Benz (2019+) — connects to the rainsensor module mounted to the windshield. Example applications: 2022+ C-Class, 2020+ S-Class, 2019+ GLE, 2020+ GLB / GLS, EQA / EQB / EQE / EQS, 2019+ Sprinter.

View product →Check your exact vehicle in the Fit Finder
Photos coming soon
DCA-4MRain-sensor module

4-pin Mercedes

FitsMercedes-Benz

Previous-generation Mercedes-Benz (2007–2022) — the earlier 4-pin rainsensor connector. Example applications: 2008–2021 C-Class, 2010–2022 E-Class, 2007–2020 S-Class, 2013–2022 CLA, 2016–2021 GLC, 2019+ G-Class, 2011–2018 Sprinter. Not sure which Mercedes connector you have? Use the Fit Finder.

View product →Check your exact vehicle in the Fit Finder

Volvo / Polestar

1 connector
DCA-3VMirror base, under shroud

3-pin Type V

FitsVolvo, Polestar

2014+ Volvo and Polestar — connector at the base of the mirror under the shroud, or accessible from the maplight cavity.

View product →Check your exact vehicle in the Fit Finder

Citroën / DS / Peugeot

1 connector
Photos coming soon
DCA-3W3Rain-sensor module

3-pin Key Way 3

FitsCitroën, DS, Peugeot

2017+ PSA-group vehicles — taps the windshield-mounted rainsensor module. Example applications: Citroën C3 / C4 / C5 Aircross / C5 X / Berlingo, DS 3 / 4 / 7 / 9, Peugeot 208 / 308 / 2008 / 3008 / 408 / 5008 / 508, including the e- electric variants.

Coming soonCheck your exact vehicle in the Fit Finder

Jaguar / Land Rover

1 connector
Photos coming soon
DCA-8CMirror base, under shroud

8-pin Type C

FitsJaguar, Land Rover

2011+ Jaguar / Land Rover — vehicle compatibility data is in our database, full product launch pending.

Coming soonCheck your exact vehicle in the Fit Finder

Parking-mode kits

For 24/7 parking recording, our PRO and PRO+ kits bundle the harnesses above with a controller that watches battery voltage and cuts power to the dash cam before the battery runs low.

PMA-01

Dongar PRO — Toyota / Lexus

Multi-location parking-mode kit. 5-pin domelight + 10-pin mirror harnesses.

 PMA-02

Dongar PRO — Mazda

Mirror-only parking-mode kit. Two 10-pin harnesses (DCA-10A / DCA-10E).

 PROS-01

Dongar PRO+ — Toyota / Lexus cable pack

PRO+ controller paired with Toyota / Lexus harnesses.

 PROS-02

Dongar PRO+ — Mazda cable pack

PRO+ controller paired with Mazda harnesses.

 PMA-04

Universal Fusebox Hardwire Kit

For vehicles without a supported mirror connector — hardwires into the fusebox.

FAQ

Is there a full vehicle compatibility list?

Yes — our Fit Finder covers ~10,000 fitments across every make above. Compatibility varies by trim, options, and even build factory, so visually identifying your mirror connector against the cards above is usually the fastest way to confirm.

Do you support GM / Chevrolet / GMC / Cadillac / Buick?

Yes. The DCA-10G covers the auto-dimming mirror connector across most 2010–2026 GM brands (Buick, Cadillac, Chevrolet, GMC). Older copy on this page said otherwise — it has been updated.

My dash cam uses an RJ11 phone-style plug — what do I do?

Pair any USB-C-output Dongar adapter with our USB-C → RJ11 cable. This is the path for radar detectors from Valentine, Escort, and Uniden.

I have a BlackVue or Thinkware dash cam with a DC barrel jack — what do I do?

Pair any USB-C-output Dongar adapter with our USB-C → BlackVue or USB-C → Thinkware cable. The converter cables match each manufacturer's barrel-jack pinout — pick the one for your dash cam.

I'm not sure which mirror connector my vehicle has.

Send us photos via our contact form. Photos of the back of the mirror, the base of the mirror, and the overhead console help us identify the connector in minutes.

Where can I find shipping, returns, and warranty info?

Our Help Center has the latest on shipping, returns, refunds, and warranty policies, along with troubleshooting and installation guides.
